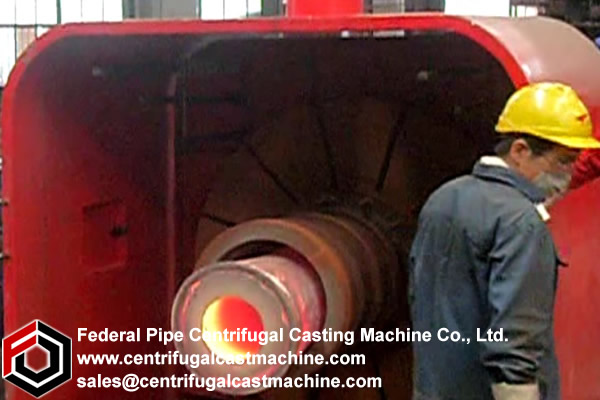

Our hot mold horizontal centrifugal casting machines are used to produce the 3-meter length grey iron pipe for building drainage and soil pipe for irrigation. We manufacture both single station centrifugal casting machine and high efficiency multi station centrifugal casting machine.

The hot mold centrifugal casting machines range from simple manually operated equipment to fully automated systems utilizing programmable logic controllers (PLC) with functions of automatic pouring, automatic mold coating, automatic mold brushing and automatic extraction. The casted product’s diameter ranged from 50mm to 1,000mm with length ranged from 500mm to 8,000mm.

Key Features

PLC Automatic operation.
Driven by Stepless Speed Governing plus frequency conversion motor.
Produce castings with superior metallurgical structure.
Mechanical mold inner wall coating and cleaning.
Automatic pipe extraction by hydraulic shaft.
Safety guard of shield cover to prevent the hot metal and cooling water from splashing.

Centrifugal Casting Machine Models & Casting Specifications

Model Min. & Max. Dia. (mm) Length (mm) Total Load: Mold + Casting
J522 50-200 500-3,000 5,000kg
J523 200-300 500-3,000 8,200kg
J524 300-400 500-3,000 10,000kg
J526 500-600 600-6,000 20,000kg
J528 700-800 600-6,000 30,000kg
J5210 900-1,000 600-6,000 35,000kg
